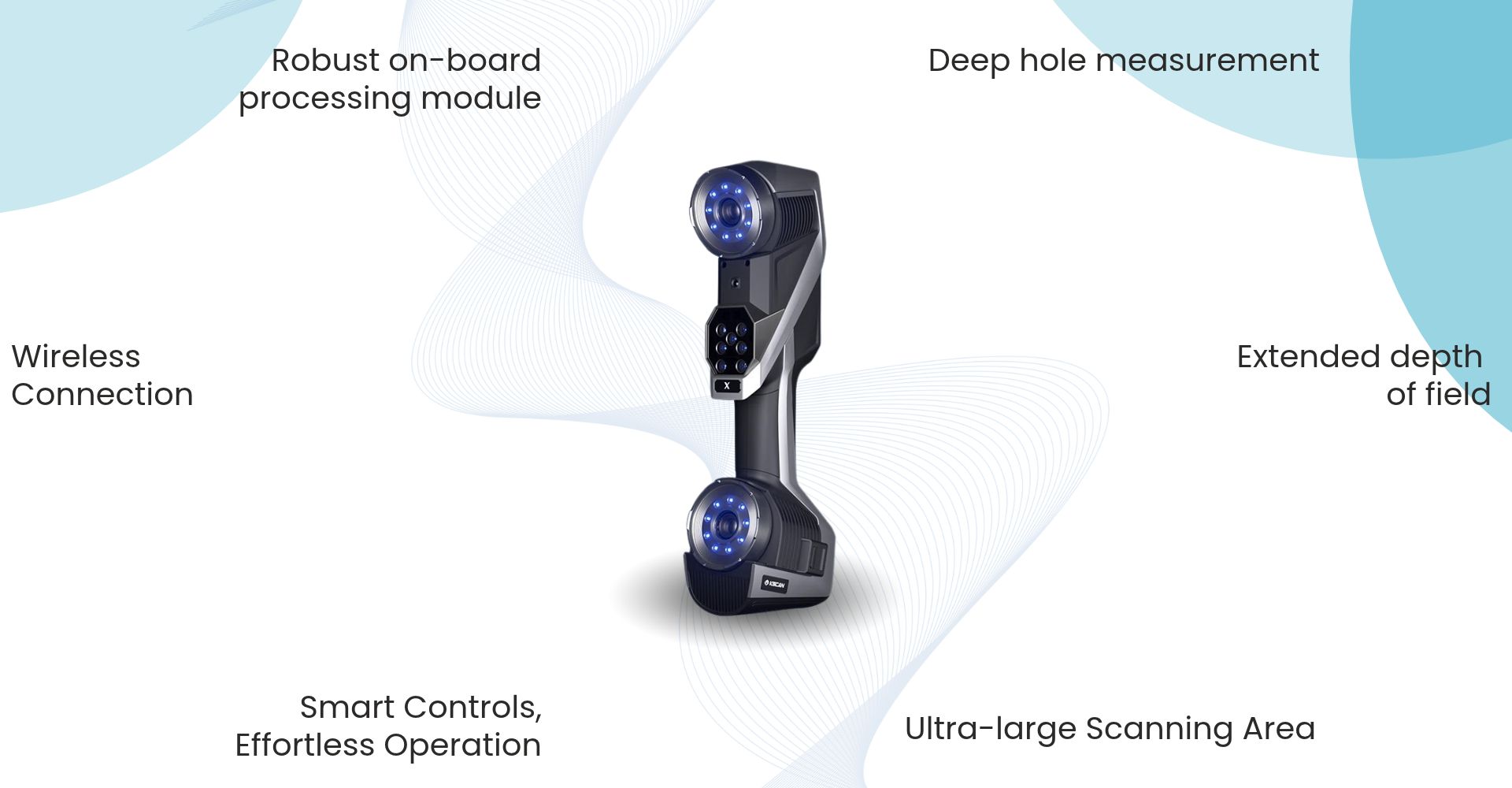

Featuring wireless operation, ultra-wide scanning area, extended depth of field, and fast scanning, the KSCAN-X offers smooth and high-precision 3D measurements for ultra-large and large to medium-sized parts across industries such as aerospace, heavy industry, and rail transportation.
|
Scan mode |
Large FOV Scanning |
84 blue laser lines |
|
Medium – distance Scanning |
54 blue laser lines |
|
|
Deep hole scanning |
1 Extra blue laser line |
|
|
Photogrammetry |
Adaptive Photogrammetry |
|
|
Accuracy(1) |
Medium-distance
scanning |
0.030 mm |
|
Large FOV
scanning |
0.075 mm |
|
|
Volumetric accuracy (1)(2) |
0.075 mm +
0.10 mm/m |
|
|
Scanning rate
up to |
6,450,000
measurements/s |
|
|
Scanning area
up to |
2600
mm*1800 mm |
|
|
Working distance |
0.30 –
2.50 m |
|
|
Object size |
0.5 m - 15 m |
|
|
Laser size |
Class? (eye-safe) |
|
|
Resolution up
to |
0.1 mm |
|
|
Dimension |
344 mm*124 mm* 99 mm |
|
|
Inter-camera
distance |
235 mm |
|
|
Connection |
Interface mode |
USB3.0
Type – B |
|
Output format |
.stl,
.obj, ply, .asc, igs, .txt, .mk2, etc. |
|
|
Wireless standard |
Wi-Fi 6, 802.11 a/b/g/n/ac/ax |
|
|
Wireless connection |
Support Dual WNIC |
|
|
Intelligent and wireless mode |
Support |
|
|
Uninterrupted power supply |
Support |
|
|
Environment Adaptability |
Operating environment |
Fanless,
suitable for workshop environments |
|
Operating temperature range |
-10°C– 40°C |
|
|
Operating humidity |
10 – 90% RH |
|
|
Protection rating |
IP50 |
|
|
Patent |
CN204329903U,
CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U,
CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U,
CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U,
CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B,
CN209310754U, CN209485295U, CN209485271U, |
|
